Choosing an ideal solar mounting system is an important part the installation.
The objective is a solidly mounted roof hook that will last for many years and withstand all kinds of weather.
China Qingdao Six brother metal Products Co., Ltd provide you the products:
1 speical desinged for solar water heater or solar panel on the roof.
2. Solar roof hook features an enormous load capacity.
3. State-of-the-art production processes guarantee the cost-efficient manufacturing of the roof hook.
4. Well and High Quality Control
5. Easy to install
6. we also provide OEM manufature service.

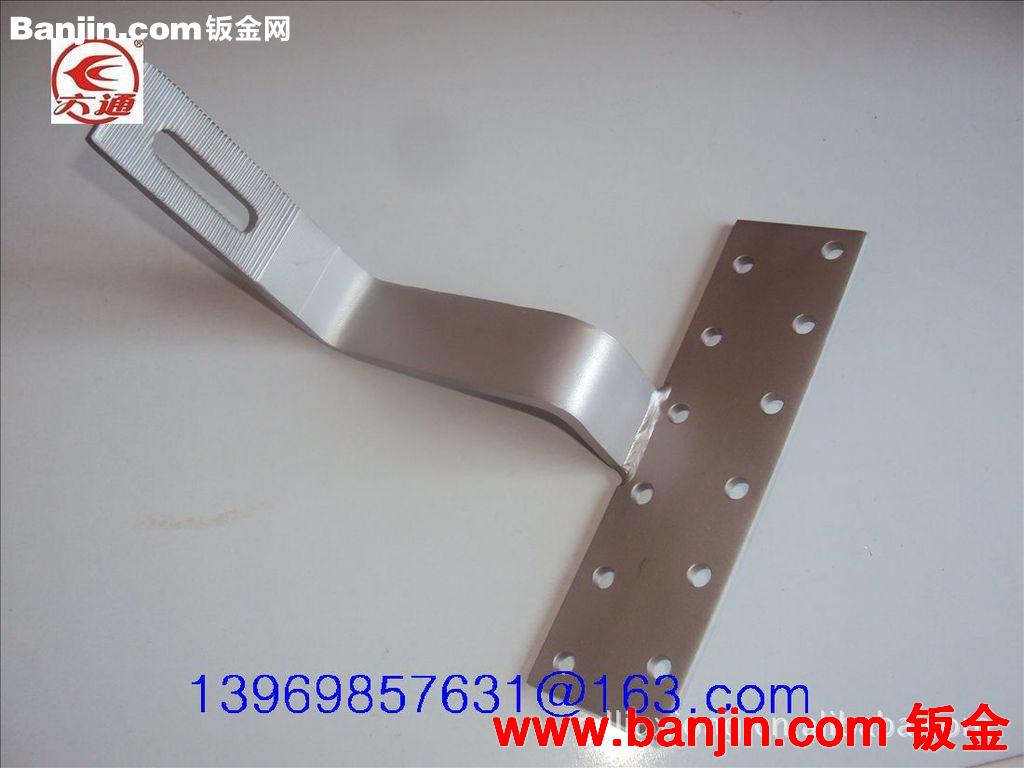

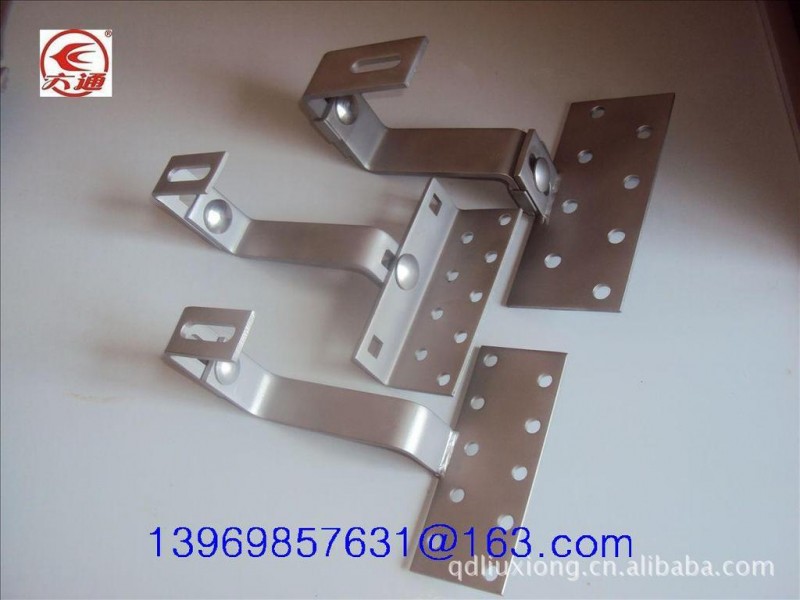

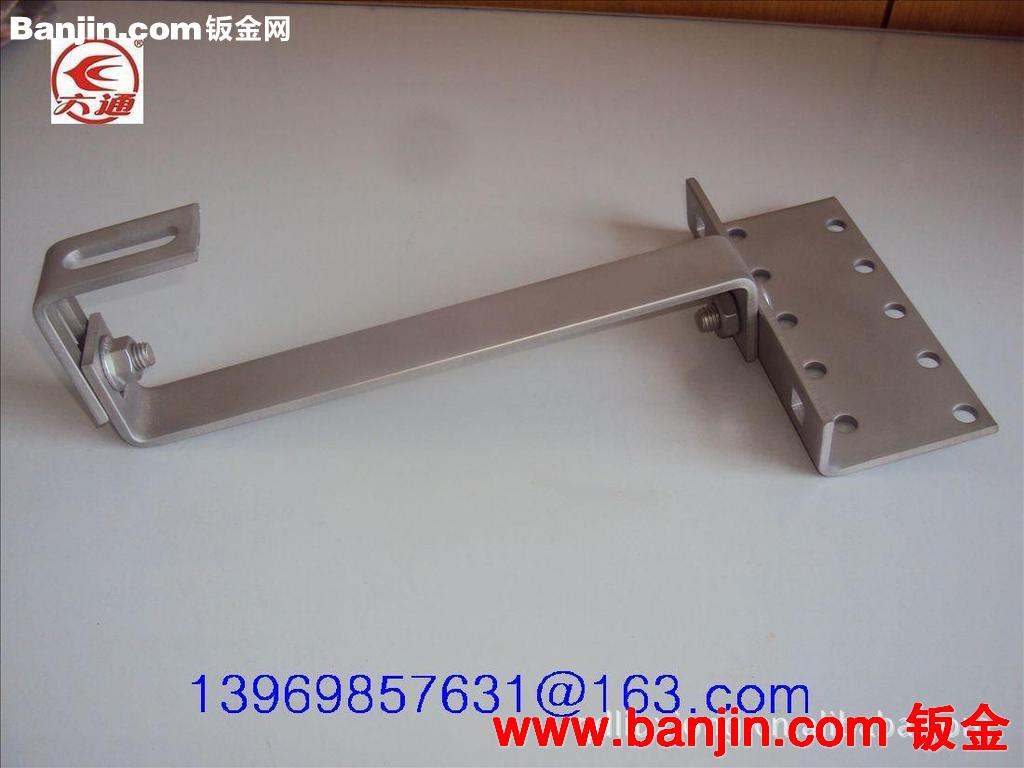

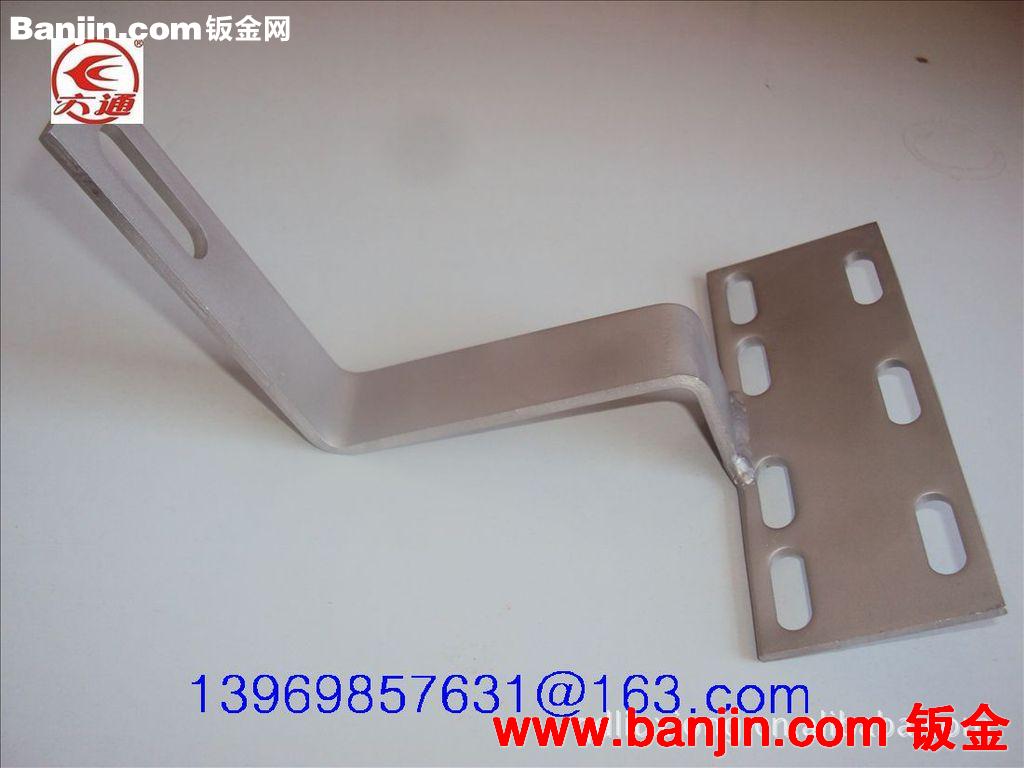

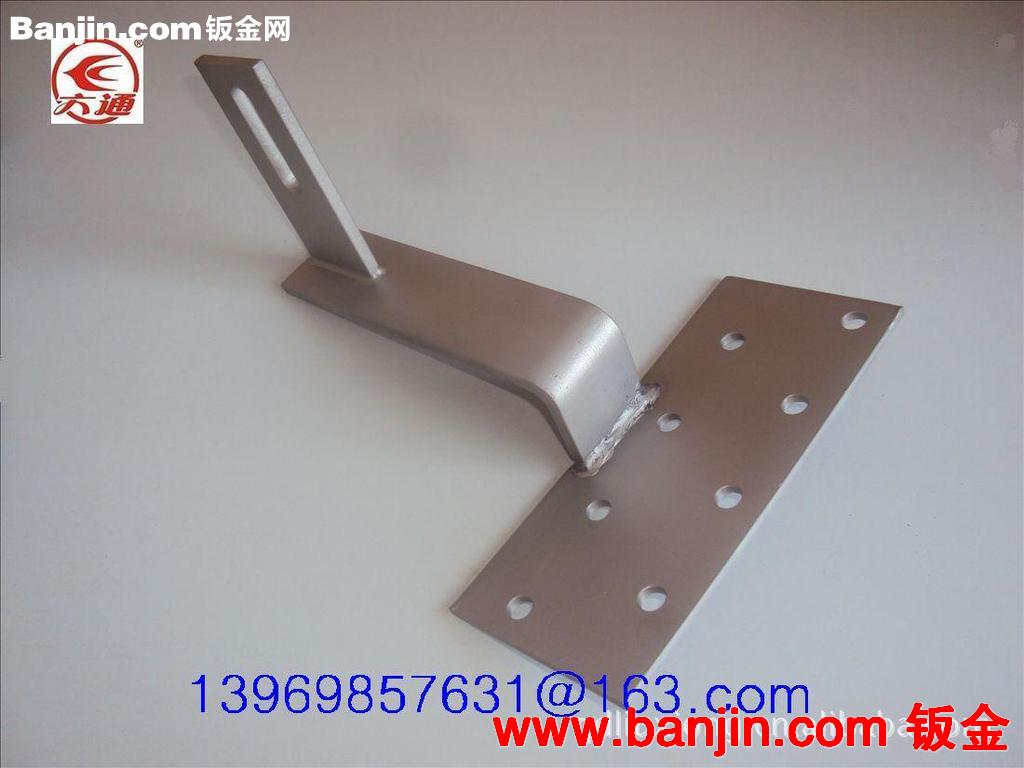

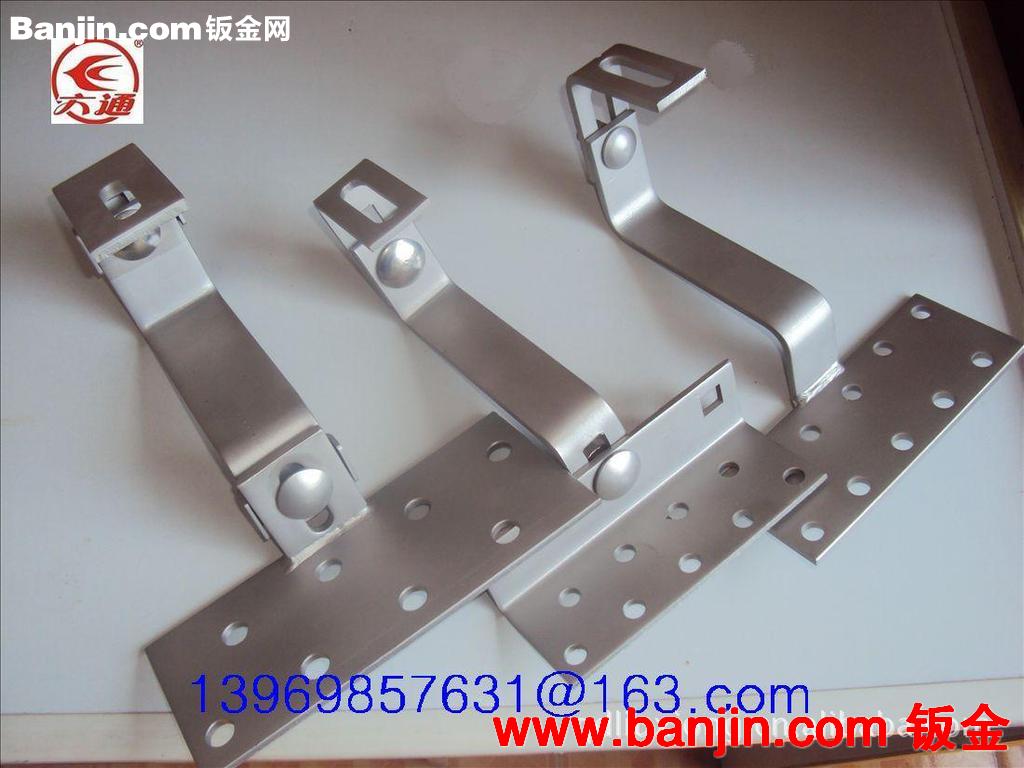

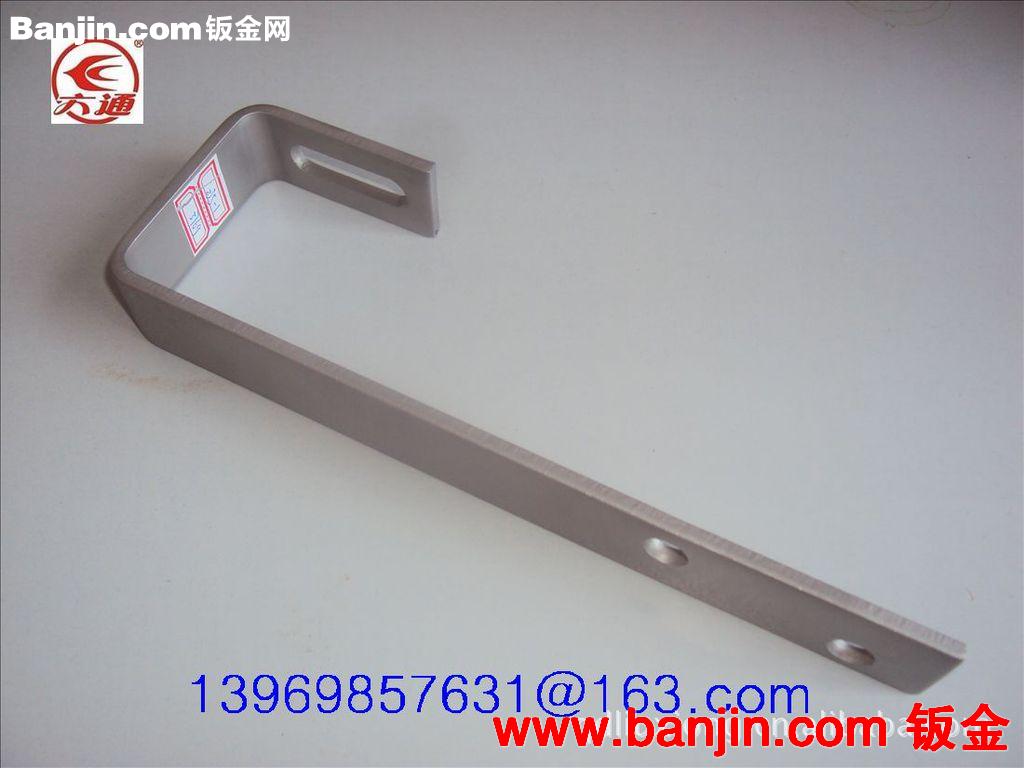

These substantial stainless steel brackets are used to secure the mounting rails to the roof beams. These are suitable for tiled roofs only, but versions for slate roofs and sheet metal roofs are also available, please ask.
To fit, a few tiles are removed from the outside of the roof and the hook secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are simply replaced around the hook ensuring a weatherproof finish.
Each rail will need a roof hook within 0.8m of each end, and further hooks at no more than 2m intervals in between.
Like the rest of the system, the stainless fixings attaching the roof hooks to the mounting rails can be tightened one-handed.
China Qingdao Six brother metal Products Co., Ltd
TEL:86-532-83356280 FAX:86-532-83357288
MSN:sixbrother@live.cn QQ:176662777
13969857631@163.com
http://www.qdliuxiong.cn/
http://lyl20056.cn.alibaba.com/
http://sixbrother.cn.china.cn/
六兄公司专业从事不锈钢太阳能光伏板屋顶支架（弯钩 Rooftop Hooks）的制作
公司现有的产品有：不锈钢太阳能支架（光伏板支架、屋顶挂钩）;不锈钢机械装配件（管卡、不锈钢冲压管件）;火车配件;
另外，我公司常年对外承接各类大型复杂曲面冲压件、拉伸件、机械加工（车铣刨磨）件、焊接（二氧化碳气体保护焊，亚弧焊等）件加工，静电喷涂、表面磷化、钝化、三维造型、数控加工等,设备齐全。
本公司以“质量第一、服务至上、工艺创新”的宗旨，以合理的价格，卓越的品质,竭诚为国内外新老客户服务，欢迎广大客户洽谈业务。
